Automatic channel letter welder Laser Welding Machine at best price

Short Description:

Applications:

Stainless Steel, Iron, Galvanized sheet, Titanium, etc. Welding all kinds of advertising metal letters and LED metal signs.


Product Detail

Product Tags

Model

DH-300W

DH-300W-H

Hand-held gun

No

5meter fiber tube welding gun

Applicable materials

Stainless Steel, Iron, Galvanized sheet, Titanium

Max laser power

300W

Laser type

Nd: YAG

Single pulse energy

90J

Laser wave length

1064nm

Welding depth

0.1-1.8mm

Spot size

0.2-2.0mm

Pulse width

10ms

Pulse frequency

50HZ

Machine power supply

220V±10%/50/60Hz

Total power

6kw

Cooling method

Chiller 2P

Viewing system

CCD + Red light

Laser Up and down stroke

200mm

Working table size

1200*2050mm

Machine size

Machine:700*720*1030mm

Chiller: 520*445*780mm

Complete size: 2.4*1.2*1.3m

Machine weight

280kgs

300kgs

Gross weight

340kgs

360kgs

Packing size

1940*910*1400mm, 2.47cbm

1. Designed for advertising letters.

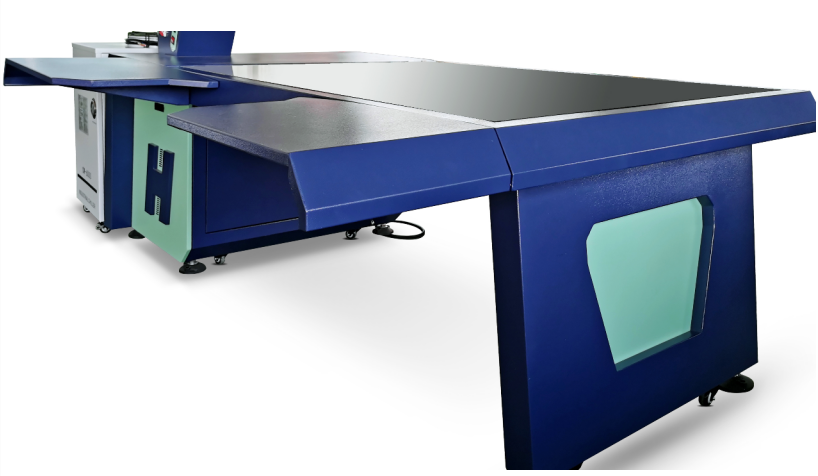

*Big size connecting working table(easy for big and small letter welding)

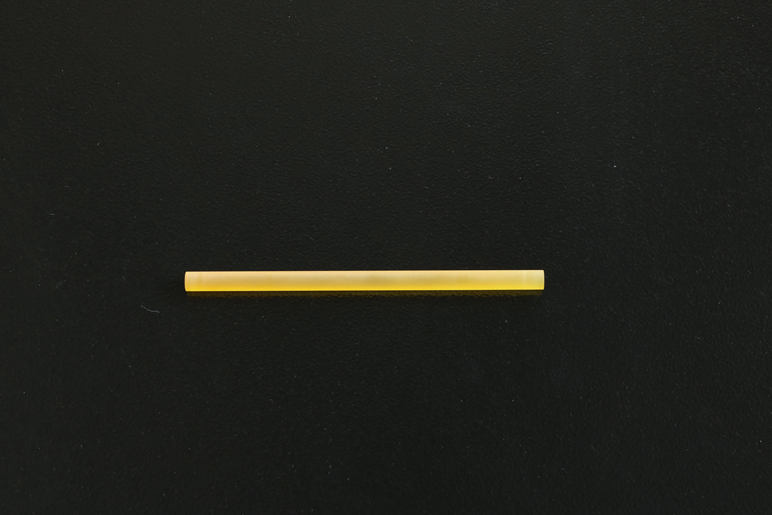

2. Laser crystals: Adopt the domestic super 7*145 laser rods, every piece all have the LQC qualification certificate. With High gain, low laser threshold, high laser power, beautiful solder joints, stable activity, good thermal conductivity and thermal shock properties.

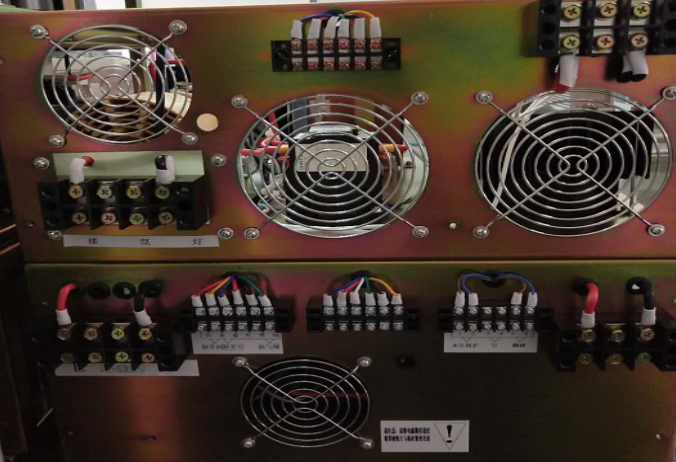

3. Laser power: Adopt eight super laser power and imported IGBT bipolar transistors, to make the power supply pulse xenon lamp current more constant, high-frequency continuous welding, not easy to decline, and long life.

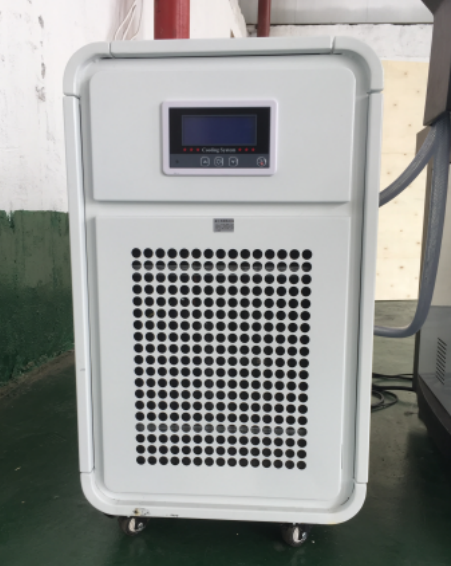

4. High-power constant-temperature refrigeration water tank, with high control accuracy, Germany EBM electronic fan as a part of the matching condensation, large air volume, low noise and filtration devices, effective filtration of water impurities.

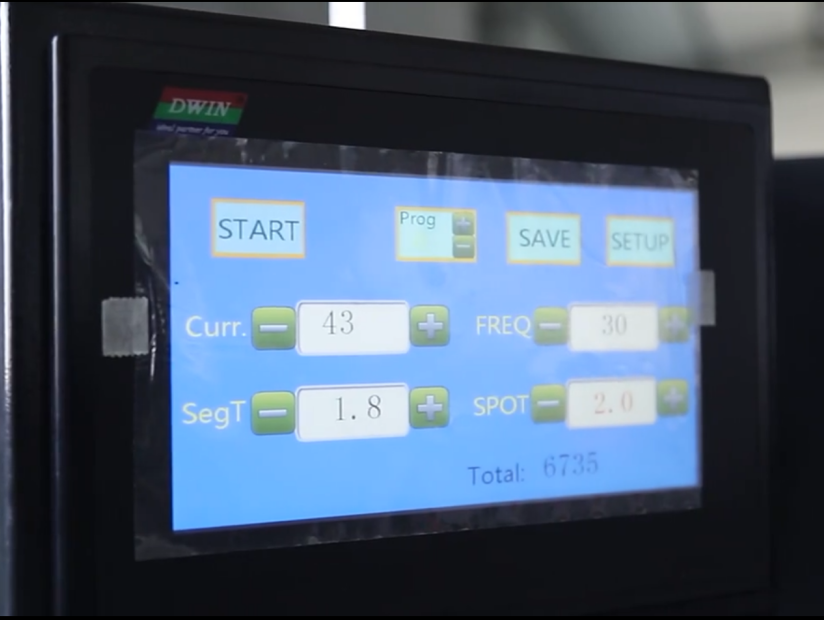

5.Controller: Independent high-definition touch control screen, control pulse current, the setting parameters will be automatically saved.

6.Laser head easy to adjust, the vertical stroke can be up to 210mm.

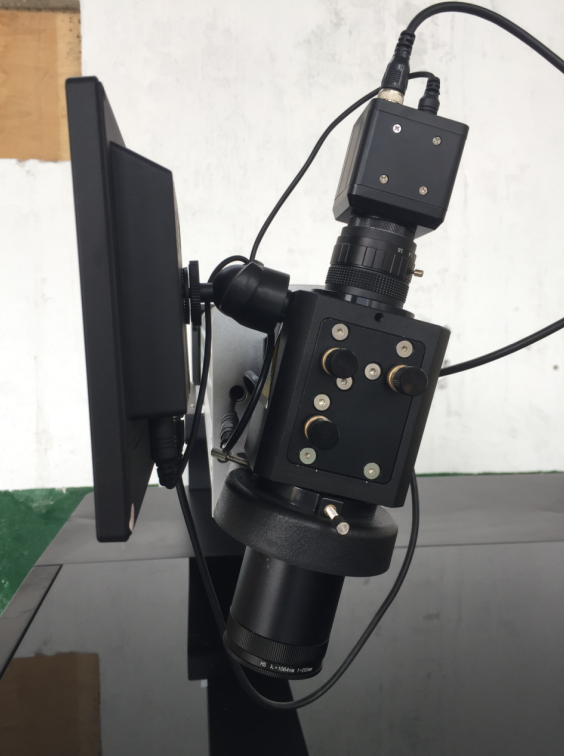

7.Used CCD micro monitor, the welding effect is clear.

8.Specially-made moving optical path, flexible, extending focusing lens F = 200MM

9.Easy operation: Men and women all can work, high efficiency, starting up can use directly, welding speed is 5 times than the traditional technology.

10.Environmental and safe: With Germany technology, no noise, no pollution, no radiation, can keep working in 24 hours.

11.Innovative structure, stable and solid, easy to operate, humanization,beautiful and atmosphere.

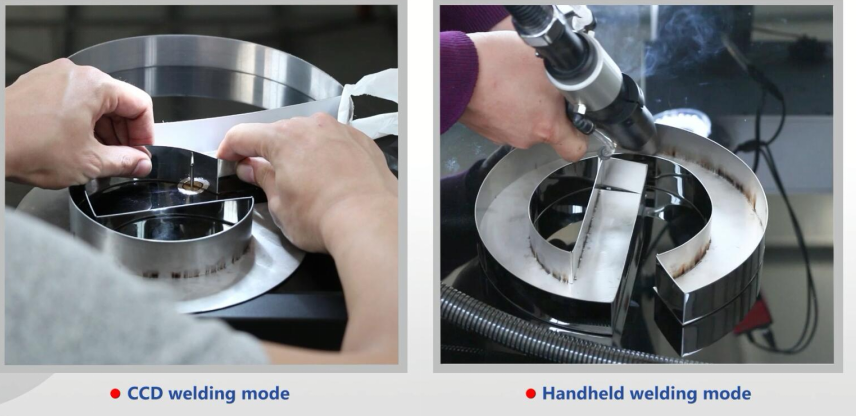

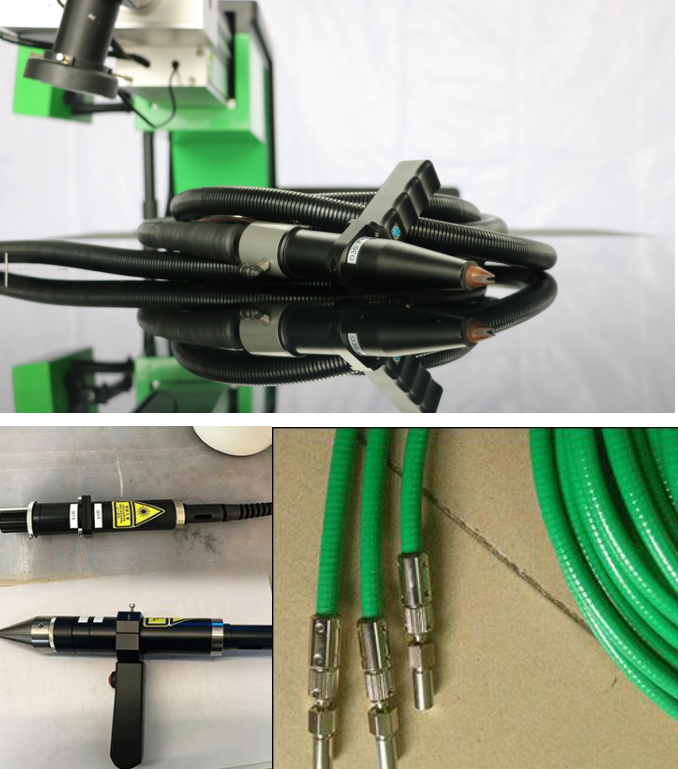

12. 5m long hand-held tube for option, suitable for different materials welding, more convenient.
