CNC Flange Channel Letter Bending Machine With Notching for 3D Sign Letters

Short Description:

Max Bending width is 200mm,aluminum and stainless steel thickness:0.2-1.2mm

With Advantage of Smart, Durable, easy operation and cost-efficient

Send email to us

Product Detail

Product Tags

material / metal processed	Aluminum Alloy, Aluminum	automation	Automatic
key selling points	High-Accuracy	warranty	2 Years
core components	Bearing, Motor, Gear	machinery test report	Provided
video outgoing-inspection	Provided	place of origin	Shandong, China
weight (kg)	500	brand name	HS
Products name	Channel letter bending machine	Model	HS-F200
Available material	stainless steel, galvanized plate, aluminum plate, iron	Function	Auto feed, Auto Slot, V notch, Flange, Auto Bend
Voltage	220v 50hz 1 phase or customized as your request	Material Width(MM)	30- 200mm
material thickness	0.3mm-1.2mm	Certification	CE
Support format	AI/PLT/DXF/NC	Air pressure	0.6-0.8MPA

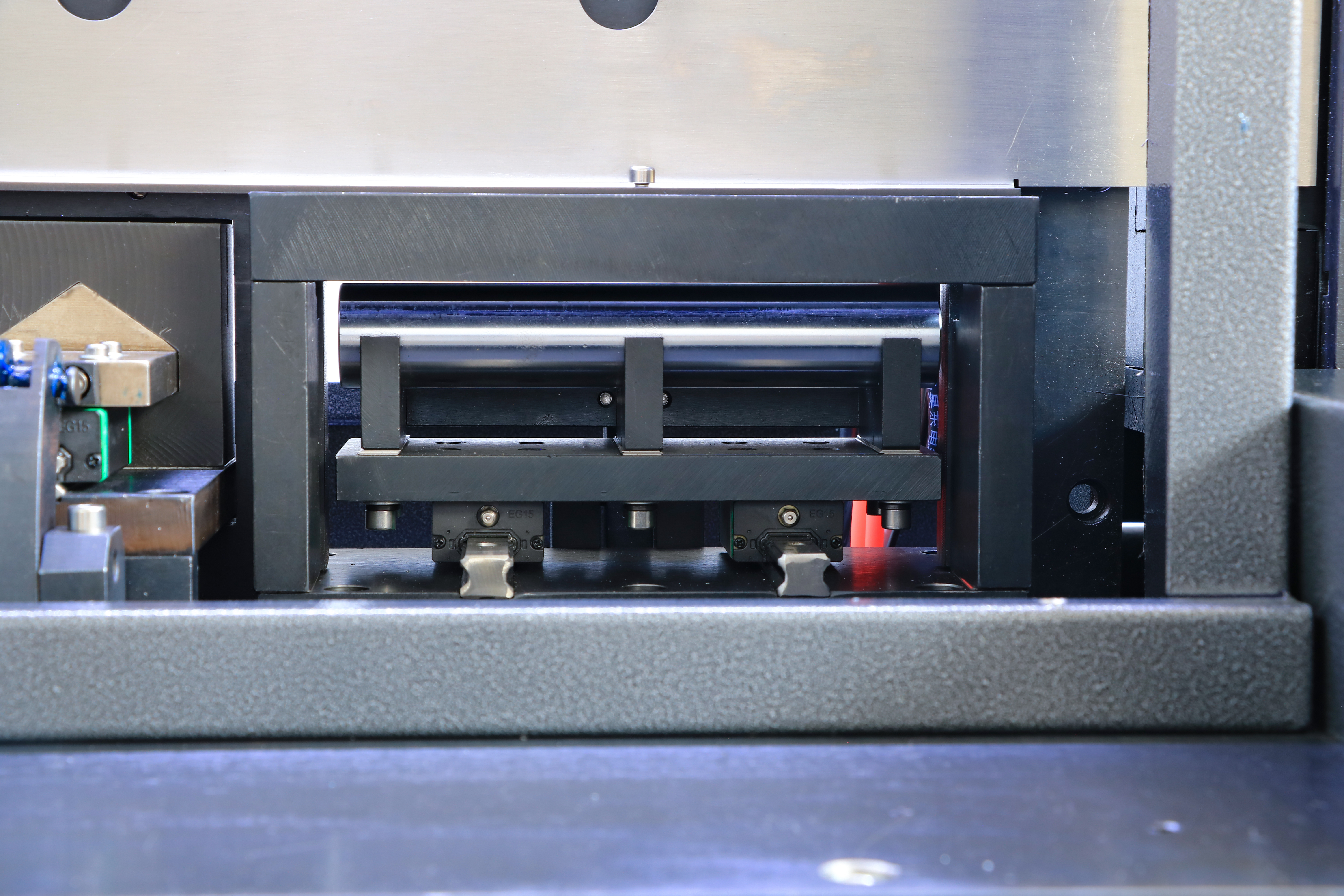

1.Mechanical hands Circulating Alternating Feeding System

Alternating double mechanical hands feeding structure with closed loop self-test system Working with high speed 8000mm/Per Minute . And protect the material from wear and tear.

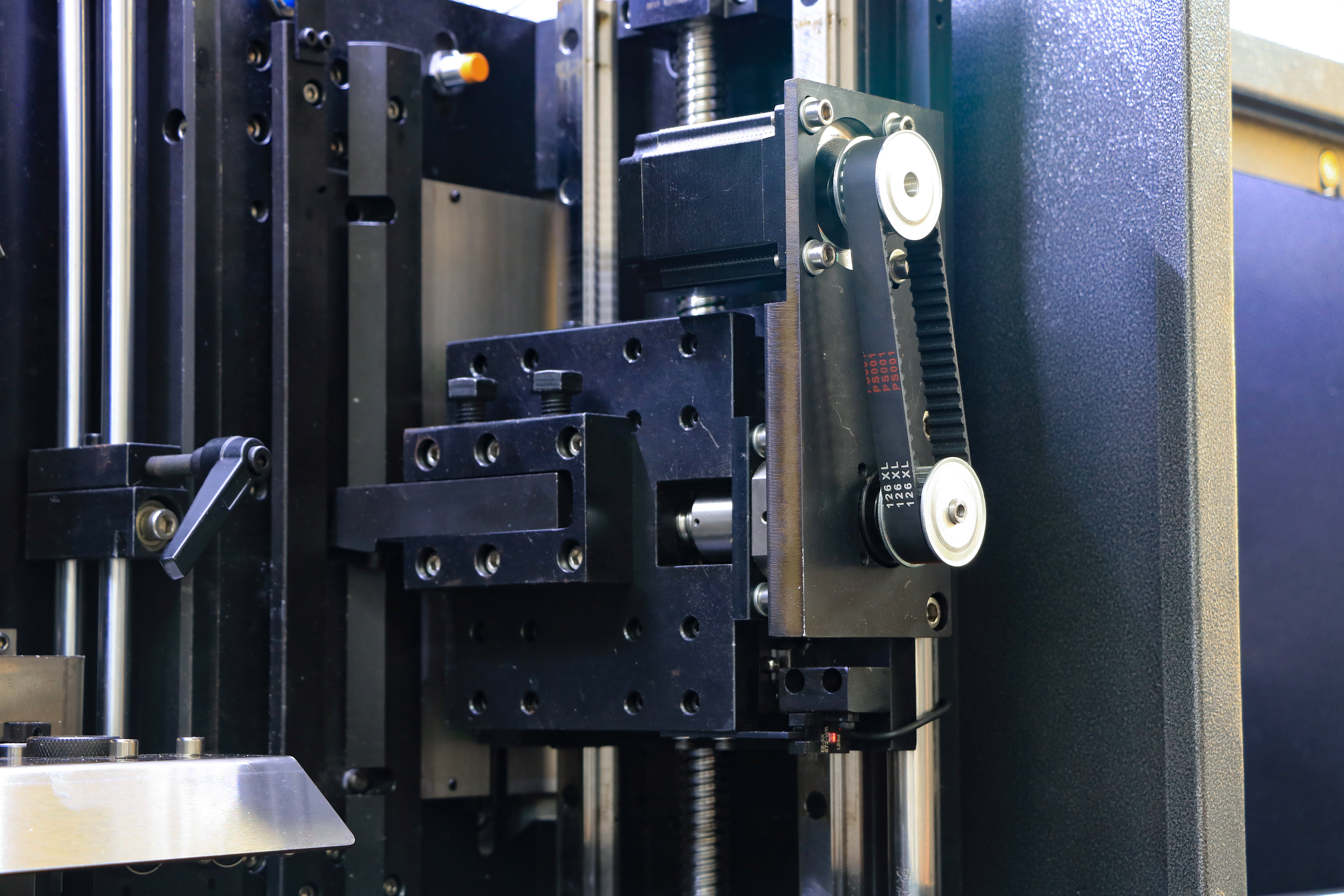

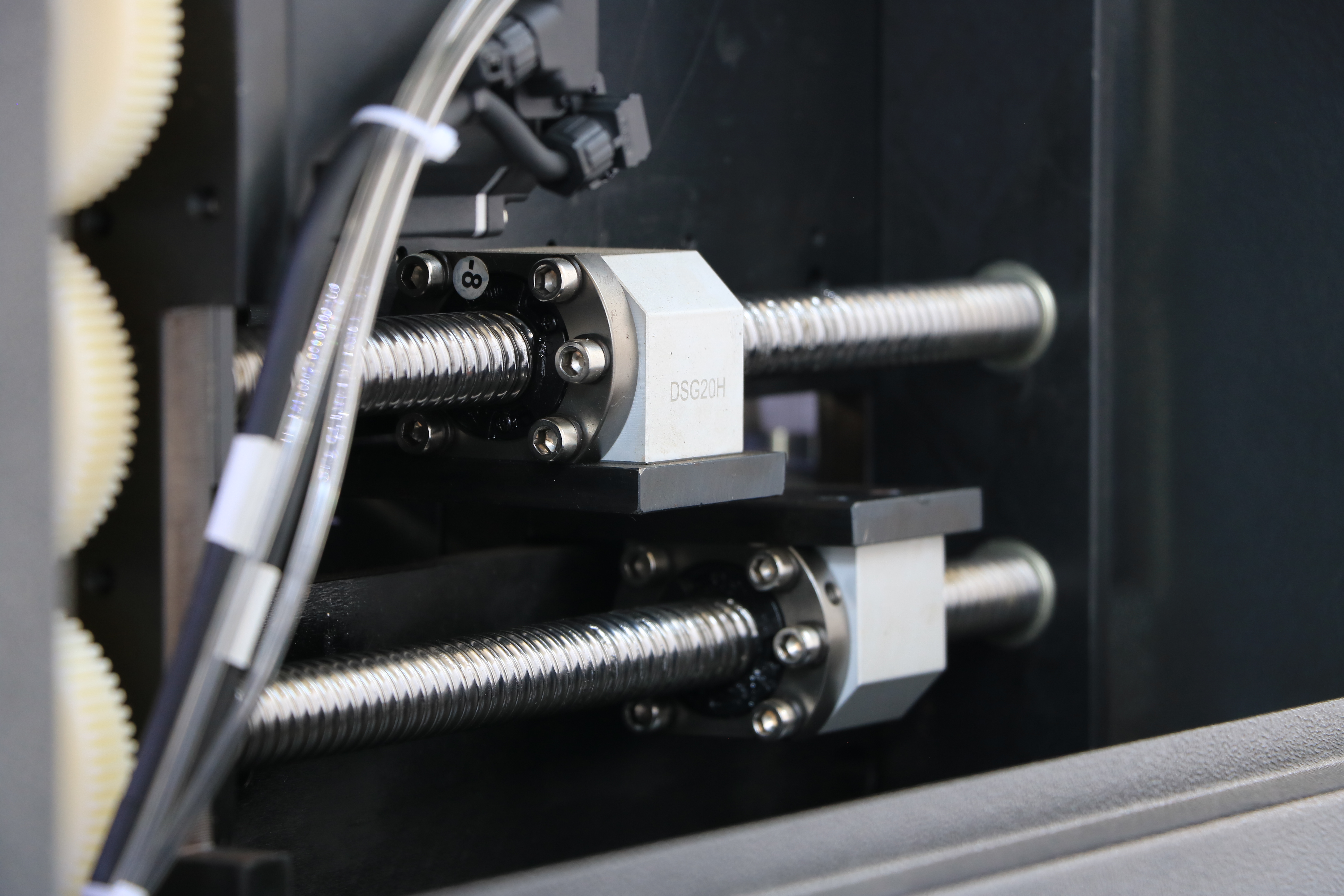

2.Feeding parts use high precision screw

Ensure that the finished sign letter is consistent with the original file and improve the efficiency of letter making.

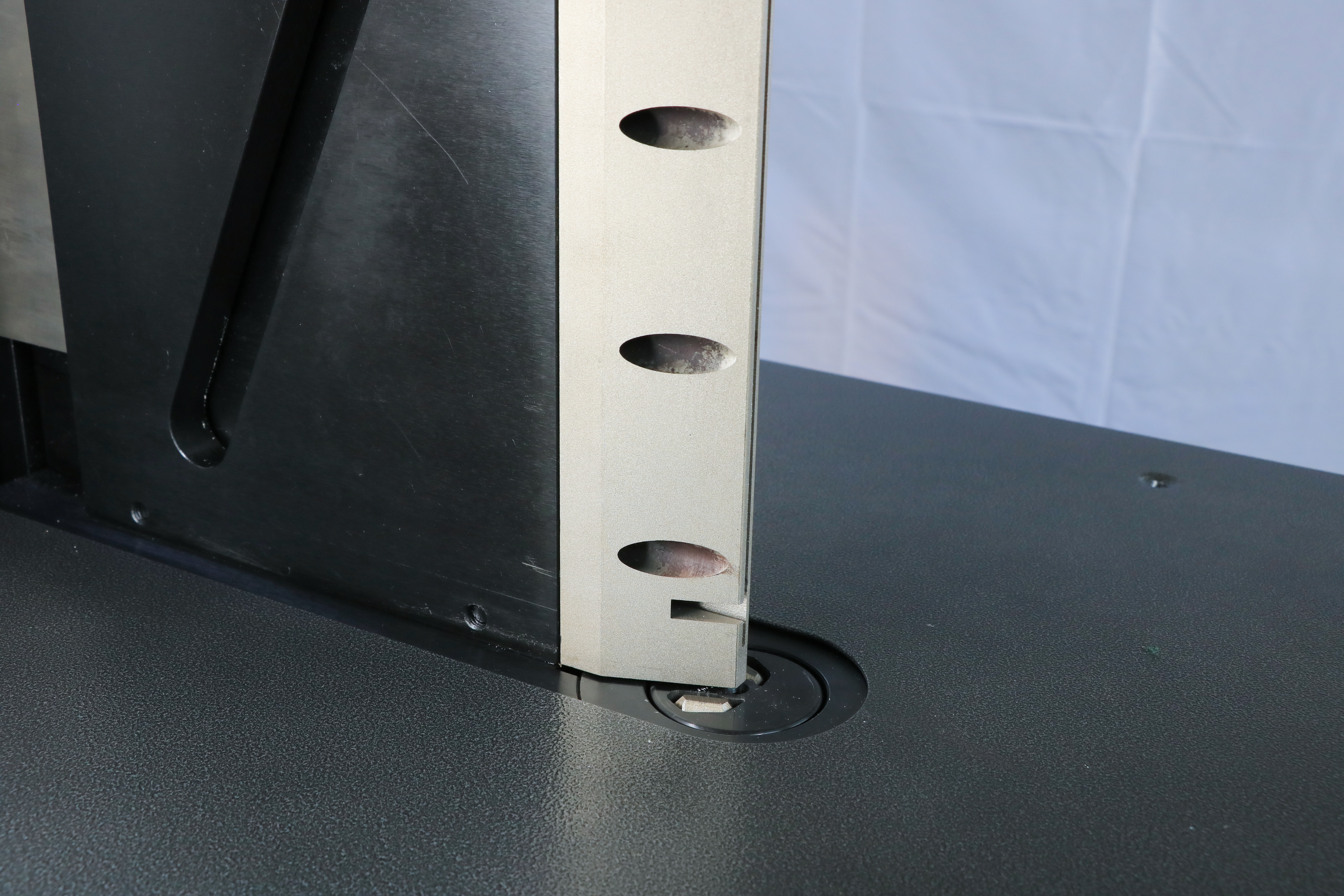

3.Imported Slotting System.

The Slotting tools are imported from Japan high strength alloy blades one side have four tool edges Total blade has 8 pieces of cutting edges, So no sharpening is required just rotate the angle once it is run out. service time is more longer , improves processing efficiency.

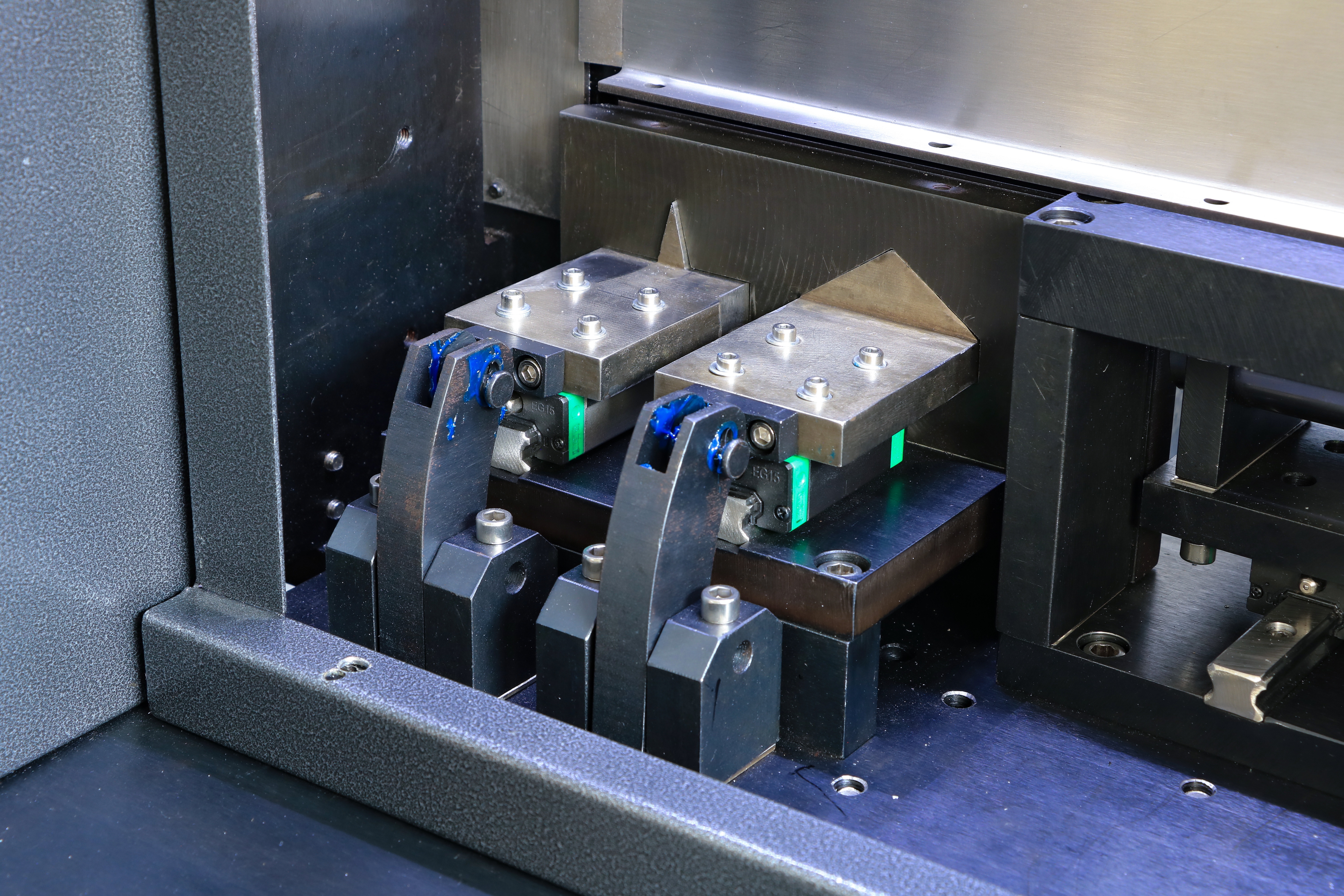

4.Automatic V-cut (notch)System

There are two type of notching shape, it will be automatic chosen software when machine process different letter file. Air pneumatic controlled V cut system features smooth cutting thickness with different angels of 30/120 degrees. Higher speed. The V notch system is able to cut thickness of material up to 1.0mm (.039" ) thick.

5.Automatic Flange System

Pneumatic flange structure When Pneumatic flange structure is working It can fold 0.6-1.2mm flat aluminum coil, the width of flange is 10mm, The length of flange is 190mm, more fast. It is flexible and easy to work with the 3D channel letter The machine has two systems, one for flange and one for standard reverse 3D advertising signs, which is more flexible and convenient.
